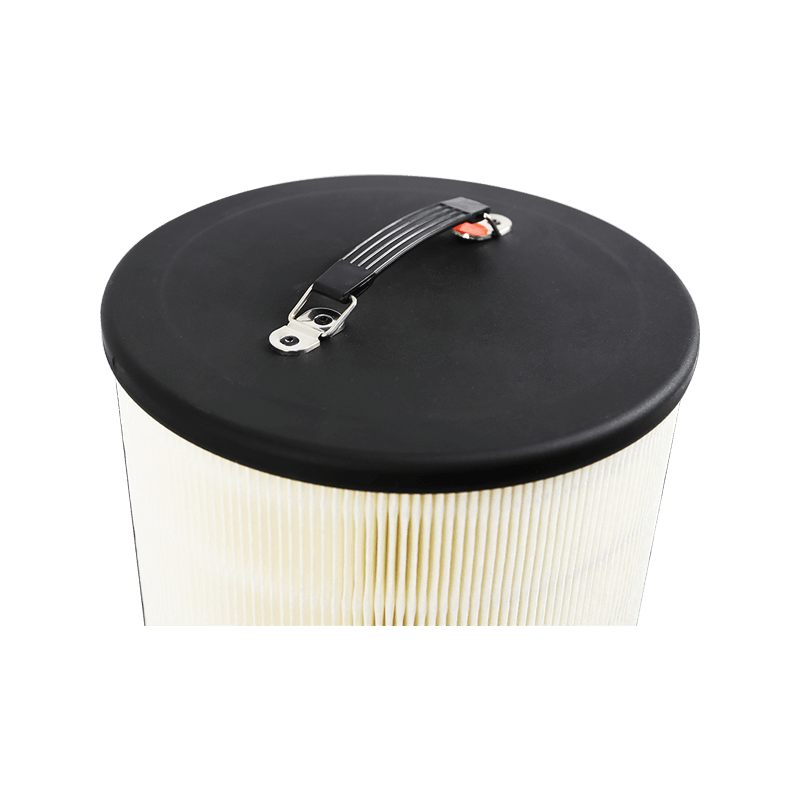

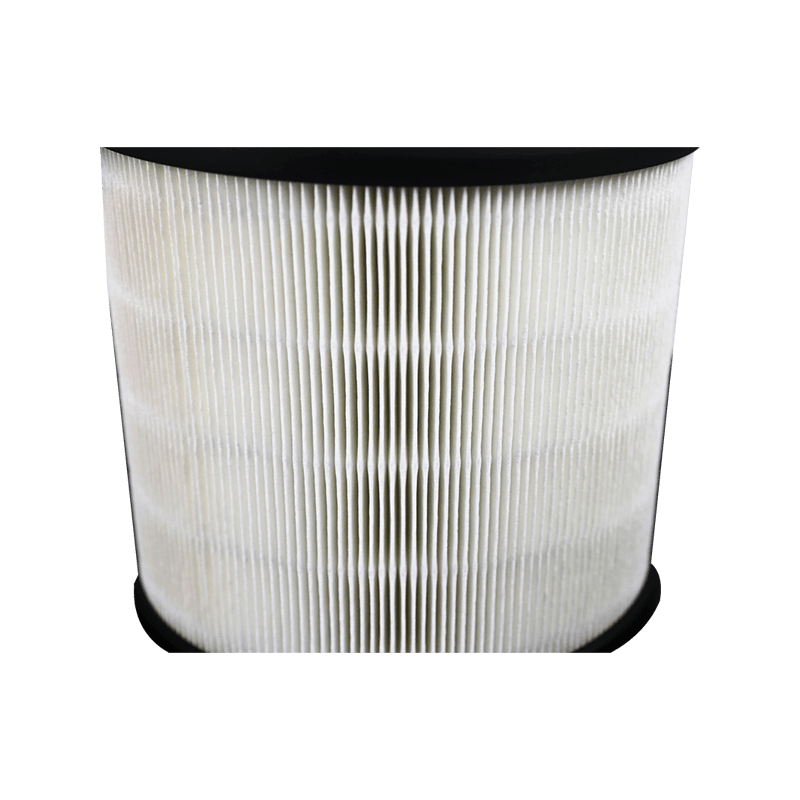

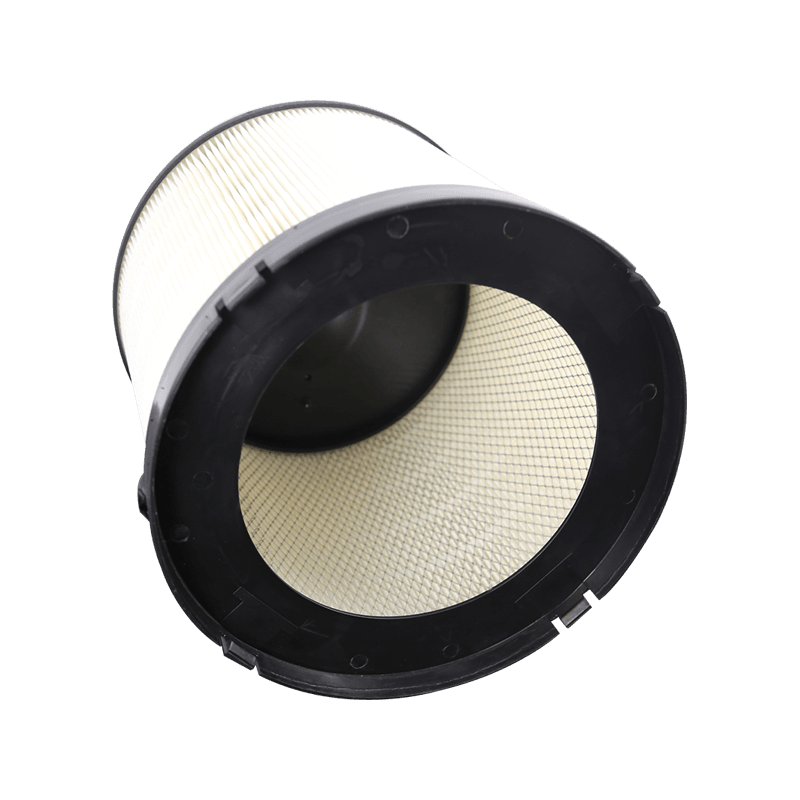

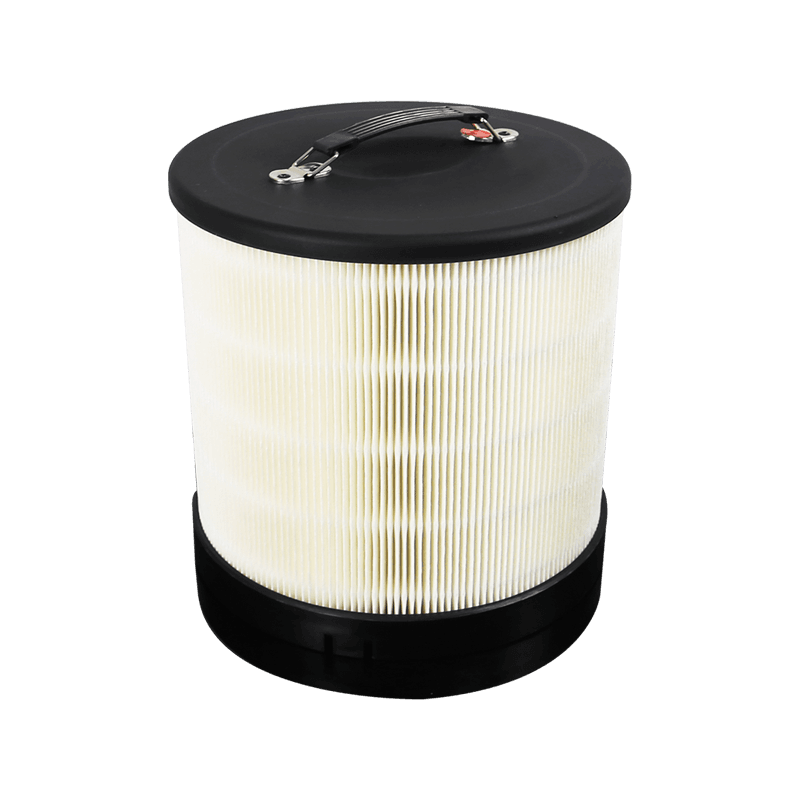

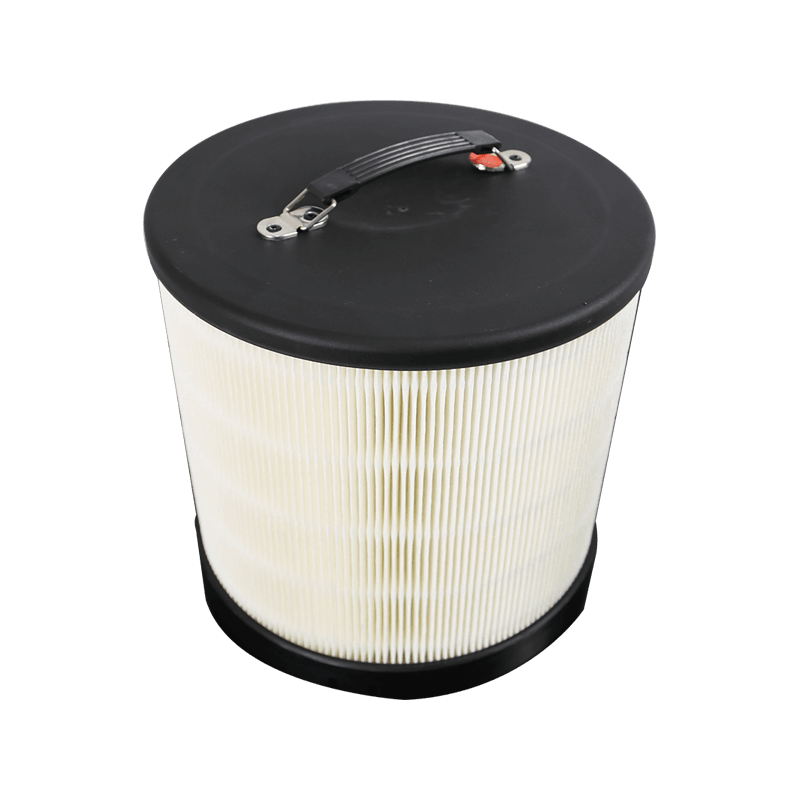

Cylindrical High Efficiency Air Filter

Cylindrical High Efficiency Air Filter can choose paper card or plastic for covers, while plastic covers cost less and are suitable for small order. Internal filter media can be selected from a variety of materials to meet different filtration requirements. This cylindrical design both reduces costs and provides good filtration performance. This filter can effectively remove particles, bacteria, and harmful gases to ensure air quality. This cylindrical filter is suitable for a variety of air purification equipment.

It has the characteristics of high efficiency, large dust capacity and so on. Cylindrical High Efficiency Air Filter is widely used in all kinds of environments with strict requirements for air quality.

Inquiry Us

PREV：V-BANK High Efficiency Air Filter
NEXT：Plastic Frame High Efficiency Air Filter

Performance Parameter

Filter material parameter

Material	Material description	Application scenario	Service temperature	Other
PEFE coated polyester	PTFE-coated polyester material, 0.3μm filtration accuracy of 99.97%	Welding fume, machining, pharmaceutical, cement industry, and viscous media filtration.	135℃	Anti-static, flame retardant, and other functions can be added
Polyester fiber	Long fiber polyester filter material, can effectively filter all kinds of PM2.5, high wear resistance	Powder spraying, sandblasting, pigment industry, wood processing	135℃	Anti-static, flame retardant, and other functions can be added
Wood pulp paper fiber	Special air filter, dust removal composite filter paper	Gas turbine, compressor, sandblasting, ash powder, drifting dust, etc	65℃
Nanofiber	Ultrafine synthetic fiber, for 0.5μm particles, the filtration efficiency can reach 99.999%	Manufacturing, food, microelectronics industry	65℃

Conventional size:

Model number	Outer diameter dimension	Bore support	Height dimension
HK/F3266	Φ324mm	Φ213mm	660mm
HK/F3566	Φ352mm	Φ241mm	660mm
HK/F3275	Φ324mm	Φ213mm	750mm
HK/F3288	Φ324mm	Φ213mm	880mm
HK/F3290	Φ324mm	Φ213mm	915mm

Nantong Henka Environment Solutions Co.,Ltd.

Nantong Henka Environment Solutions Co.,Ltd. was founded in 2004. Henka is one of the famous and professional air filter manufacturers for air purifiers, air cleaners, and ventilation systems. Our air filters include HEPA, VOC removal filters, Formaldehyde removal filters, Activated Carbon filters, Odor removal filters, HVAC filters, i-Hepa ventilation purification devices, and IFD purification devices. Cylindrical High Efficiency Air Filter Wholesale.
Henka is the customized air filter supplier for the famous brands of air purifiers and air cleaners in the North American market and China market. Henka provides not only air filters but also professional air purification solutions.
Henka is located in Haimen City, Jiangsu Province, which is only 120 kilometers away from Shanghai. Cylindrical High Efficiency Air Filter Suppliers in China. Henka has ISO14001:2015, ISO9001:2015 and ISO45001:2018 certifications, efficiency and air resistance test system for filter media, noise test lab, 30 cubic meters test room for formaldehyde and VOC remove efficiency, CADR test room for air purifier. ASHRAE 52.2 is used in testing air filters.
With more than 20 years of experience working with a US engineering team, we can design the product based on the specifications, drawings, samples, or even ideas from our customers, and provide professional air filtration solutions to our customers.
